Air Louvers VSLH Slimline Vision Lite Kits

$66.00
Request a Quote

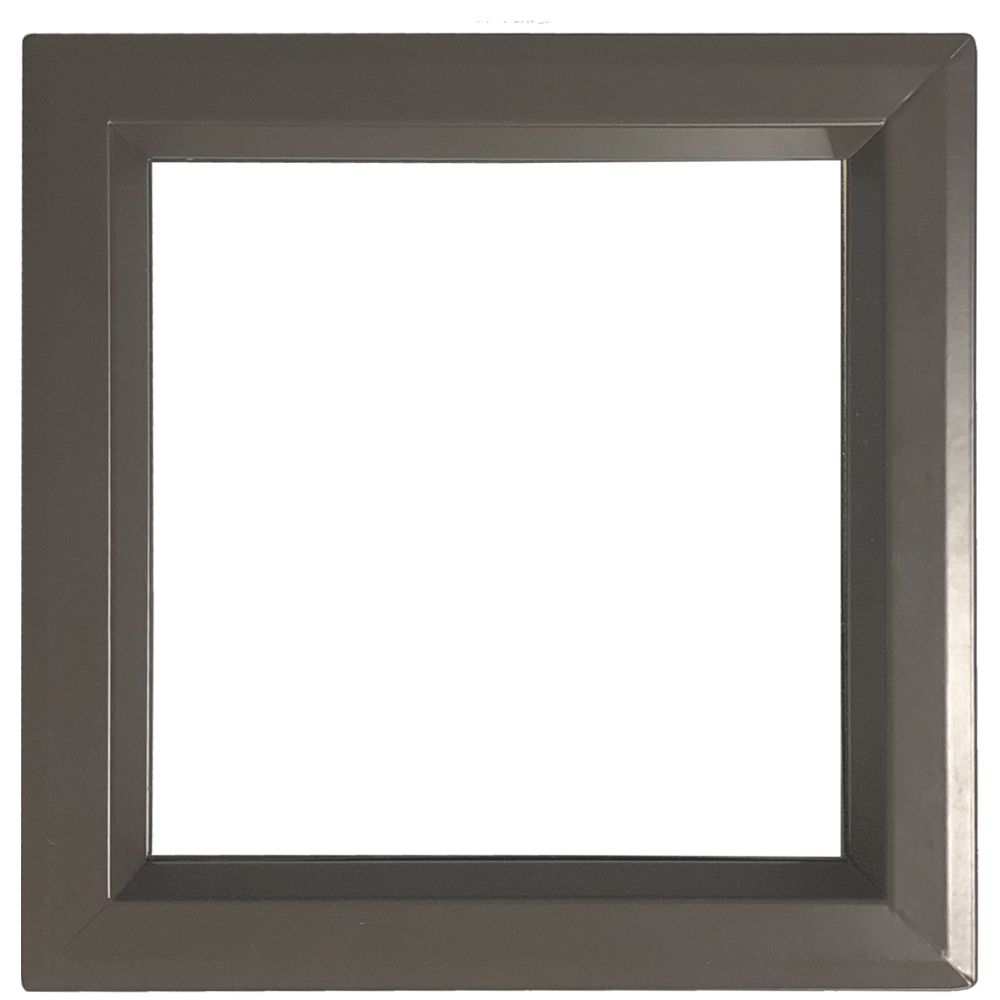

Air Louvers VSLH Slimline Vision Lite Kits are low-profile vision lite frames designed for commercial wood and hollow metal doors. The Slimline design mounts flush to the door for a clean appearance and is designed to help avoid interference with panic hardware and other door hardware.

Product details:

  • Slimline low-profile commercial vision lite frame

  • VSLH Series

  • Designed for commercial wood and hollow metal doors

  • For use with 1-3/4" thick doors

  • Accommodates 3/16" to 5/16" glazing

  • 20-gauge cold rolled steel frame

  • Radius corners with mitered and welded construction

  • Continuous glass retainer

  • Self-attaching frame design

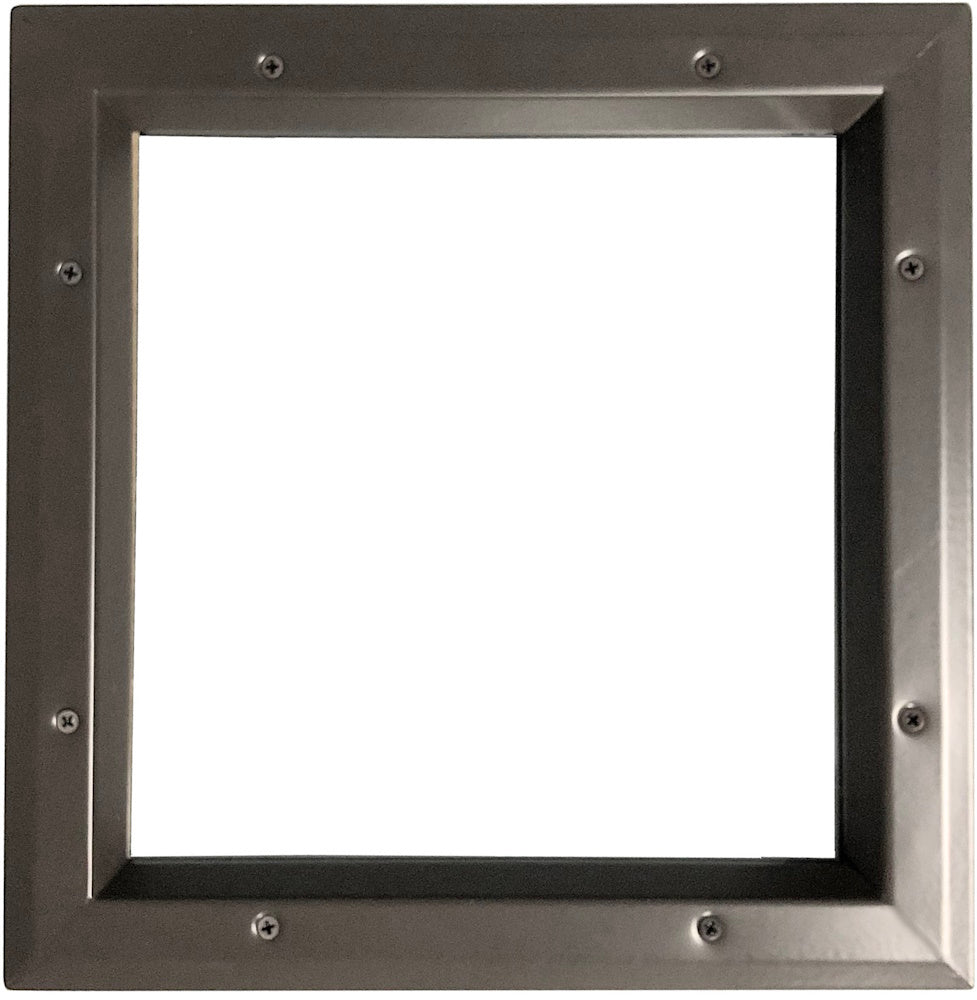

  • Fasteners installed from one side for easier installation

  • Corridor side remains free of visible fasteners for a cleaner appearance

  • Designed to avoid interference with panic hardware and other door hardware

  • Fire-rated options may be available depending on glazing, size, and door assembly

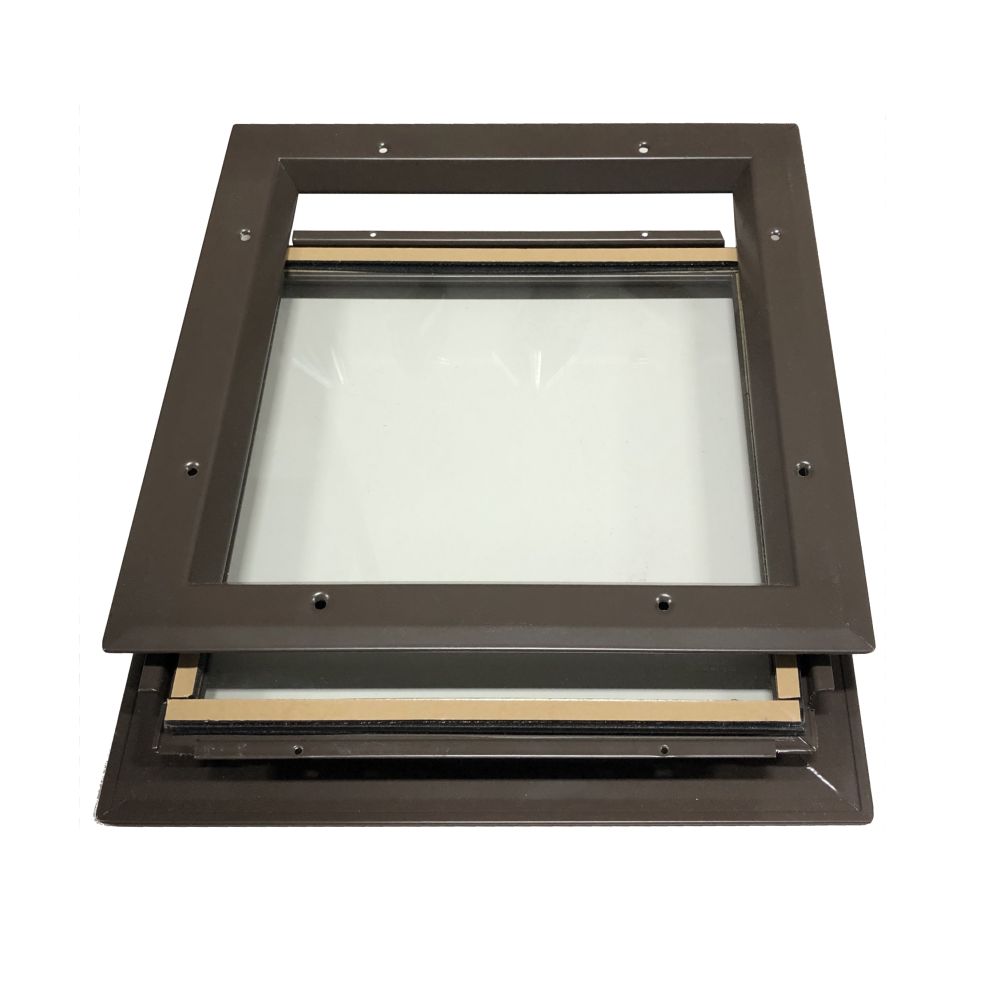

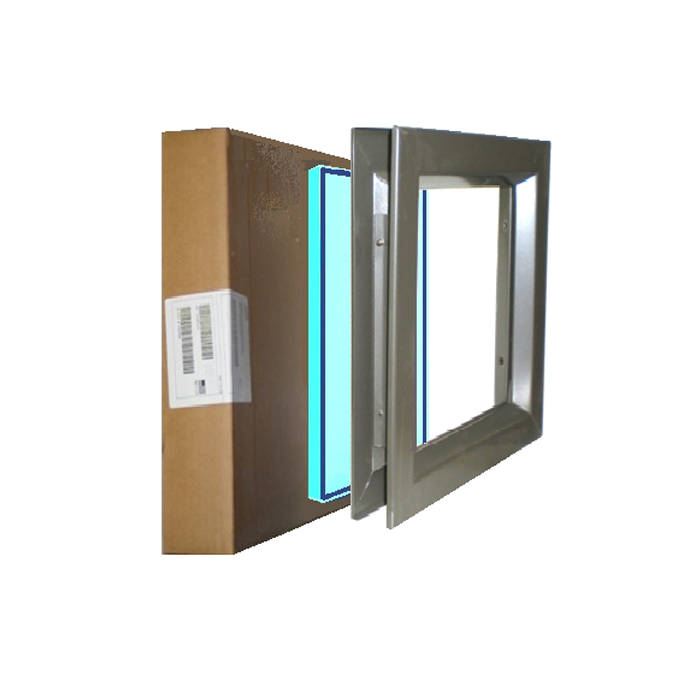

  • Available as frame-only or as a complete PAK with glazing and glazing tape, depending on project needs

  • Suitable for retrofit, replacement, facility maintenance, and new construction projects

  • Available through SHP by quote

Glazing options may include:

  • Clear tempered safety glass for non-rated applications

  • Wired glass with safety film for select fire-rated applications

  • Ceramic fire-rated glazing options for select rated applications

  • Other glazing options depending on rating, size, listing, and code requirements

Common applications:

  • Commercial hollow metal doors

  • Commercial wood doors

  • Fire-rated door openings, depending on glazing and listing requirements

  • Non-rated interior door openings

  • Schools and universities

  • Healthcare facilities

  • Government buildings

  • Office buildings

  • Facility maintenance and retrofit projects

Not sure which vision lite kit is right for your door? SHP can help confirm the correct Air Louvers VSLH kit based on your door type, door thickness, visible lite size, glazing type, fire rating, code requirements, and facility application.
