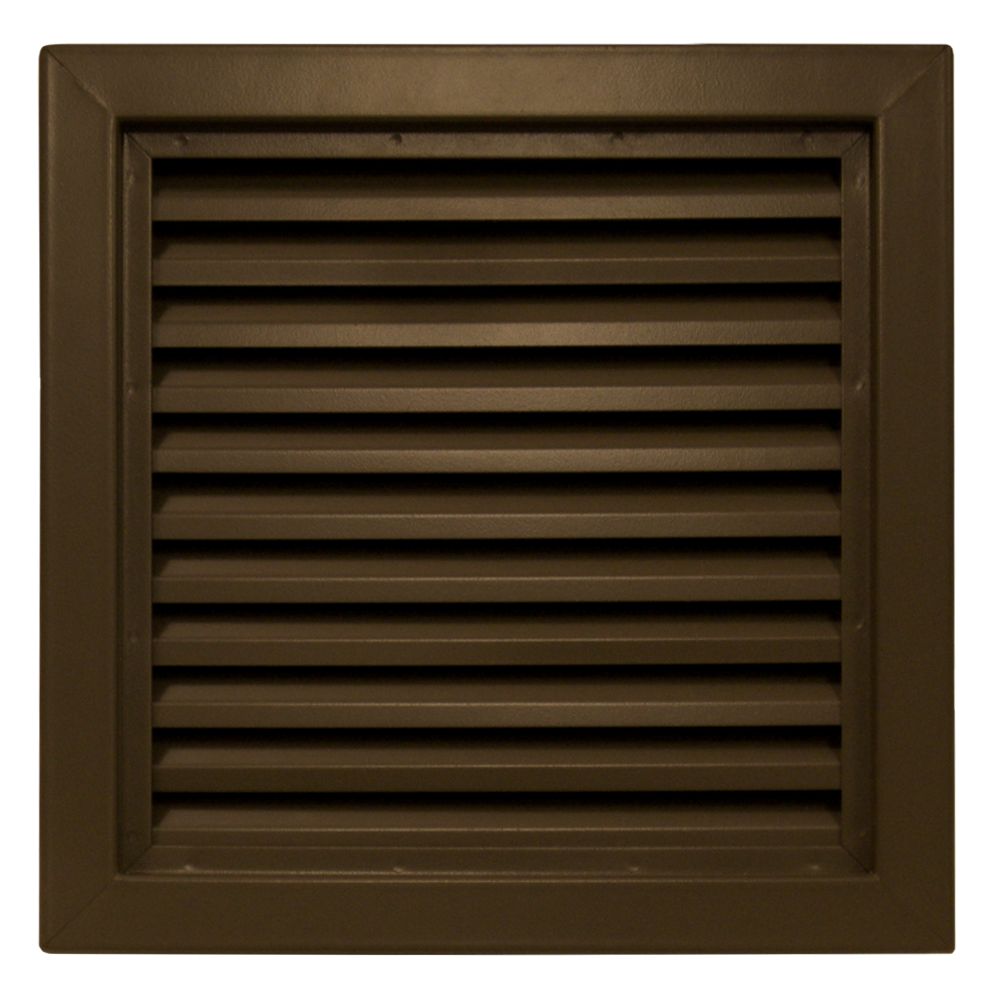

Air Louvers 800 Series Inverted Y-Blade Louvers

Air Louvers 800 Series Inverted Y-Blade Louvers are commercial door louvers designed to provide ventilation while maintaining non-vision construction. This series is commonly used in schools, institutional buildings, commercial facilities, and other applications where airflow is needed through a closed door.

Product details:

• Commercial door louver series

• Inverted “Y” blade design

• Non-vision construction

• 50% free area for airflow

• 1" blade spacing

• Mechanically attached louvers in a sturdy welded frame

• Frame and blade material options may include cold rolled steel, galvanneal, zinc-plated steel, or stainless steel

• Galvanneal or zinc-plated options may be suitable where added corrosion resistance is needed

• Standard powder coat bronze finish on steel

• Stainless steel option available with #4 finish

• Multiple mounting options available depending on door thickness and frame selection

• Mounting options may include A1, CORE, A, and C frame styles

• Designed for 1-3/4" doors with select mounting options

• Options may be available for 1-3/8" to 1-5/8" doors depending on frame style

• Optional insect screen or bird screen may be available

• Suitable for retrofit, replacement, facility maintenance, and new construction projects

• Available through SHP by quote

Common applications:

• Commercial hollow metal doors

• Mechanical room doors

• Utility room doors

• Storage room doors

• Restroom support spaces

• Schools and universities

• Institutional facilities

• Industrial and commercial buildings

• Non-rated ventilation openings

Not sure which louver is right for your opening? SHP can help confirm the correct Air Louvers 800 Series louver based on your door type, door thickness, louver size, material, finish, ventilation needs, screen requirements, and facility application.
