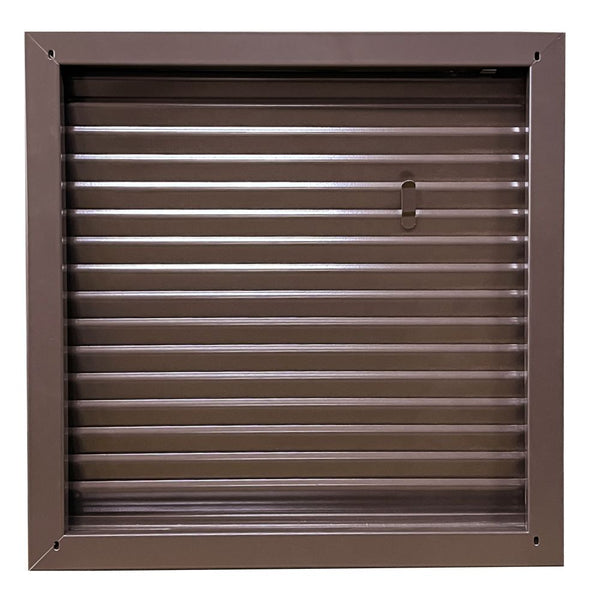

Air Louvers 1900A fire-rated adjustable Z-blade louver for commercial doors

Air Louvers 1900A Fire-Rated Adjustable Z-Blade Louvers

$209.75
Request a Quote

Air Louvers 1900A Fire-Rated Adjustable Z-Blade Louvers are designed for commercial fire-rated door openings that require controlled ventilation. The adjustable Z-blade design allows airflow when open, while the fusible link mechanism is designed to close the louver during fire conditions.

Product details:

  • Fire-rated commercial door louver series

  • Adjustable / operable Z-blade design

  • Designed for 1-3/4" steel and composite fire doors

  • Suitable for fire-rated door assemblies up to 1-1/2 hours, depending on size, door type, and listing requirements

  • Fusible link mechanism activates at 165°F

  • Self-attaching frame design

  • Single-sided fastening helps keep the corridor side free of visible fasteners

  • Louvers are riveted to the operating bar and frame

  • 1-1/4" face frame with mitered and welded corners

  • Cold rolled steel or zinc-plated steel frame and blades depending on selected configuration

  • Standard bronze powder coat finish

  • Allows ventilation while supporting listed fire-rated opening requirements

  • Security grille option may be available through the 1900ASG Series

  • Suitable for retrofit, replacement, facility maintenance, and new construction projects

  • Available through SHP by quote

Testing and listings may include:

  • UL listed fire-rated louver options

  • ANSI/UL10B

  • ANSI/UL10C

  • CAN/ULC S104

  • Fire-rated applications up to 90 minutes, depending on door assembly, size, and configuration

Common applications:

  • Fire-rated hollow metal doors

  • Fire-rated steel and composite doors

  • Commercial mechanical room doors

  • Utility room doors

  • Stairwell support spaces

  • Schools and universities

  • Healthcare facilities

  • Government and municipal buildings

  • Industrial and facility maintenance applications

Not sure which fire-rated louver is right for your opening? SHP can help confirm the correct Air Louvers 1900A configuration based on your door type, louver size, fire rating, ventilation needs, code requirements, finish, and facility application.
