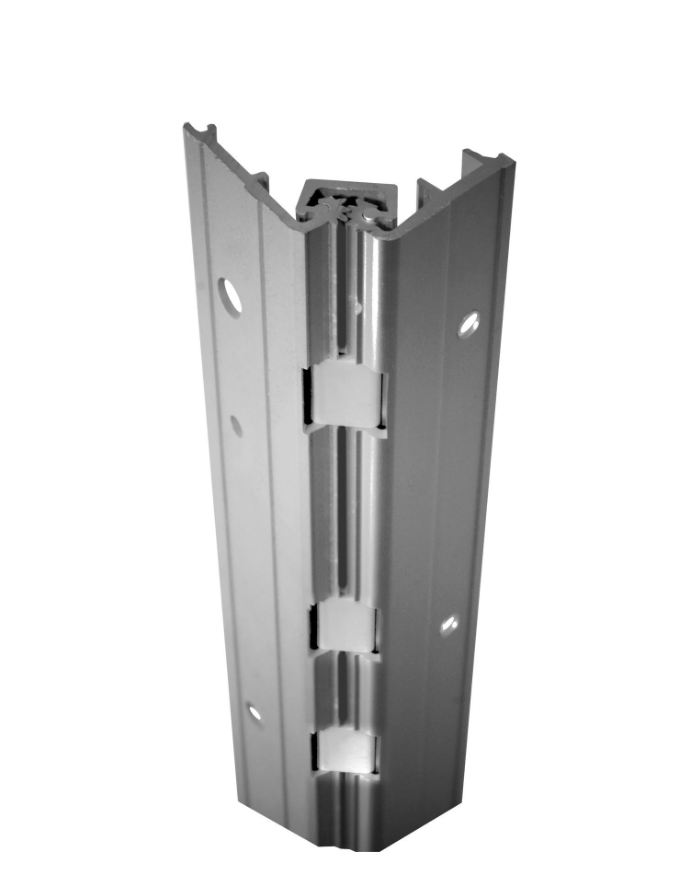

ABH Manufacturing Continuous Hinge
$334.19
- Full surface, heavy duty

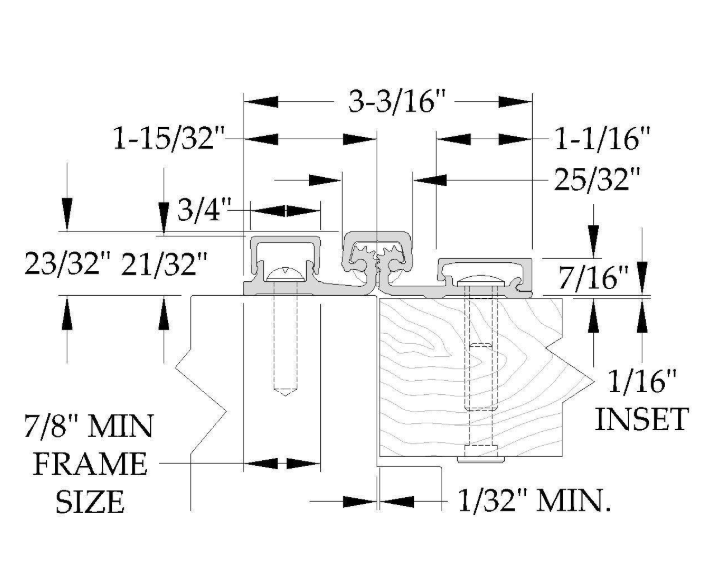

- 1/16" door inset
- For narrow-faced frames
- 48" door width maximum
- 450 lbs. door weight maximum
- Average weight per unit = 11 lbs
- Fasteners: 12-24 X 7/8" undercut self drilling, thread-forming tek machine screws for frame and 1/4-20 sex bolts and shoulder bolts for door
- Standard Lengths: 79", 83", 85", 95" and 120"
- Finishes: Clear, dark bronze and black anodized
-
Fire Rating
- Approved for use on metal swinging type fire doors rated up to and including 90 minutes (Specifiy "FR" option for 3 hour rating)
- Approved for use on wood swinging type fire doors rated up to and including 60 minutes (Specifiy "FR" option for 90 minute rating)
